Your Step by Step Guide to Setting Up the Venom Carbon Water Fed Pole Kit

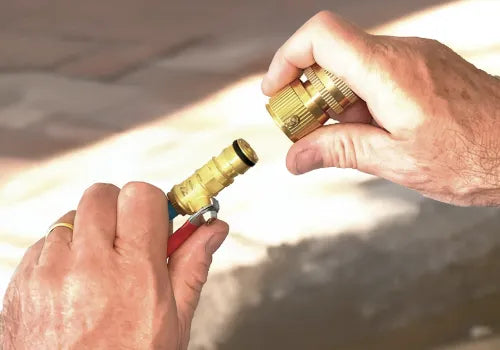

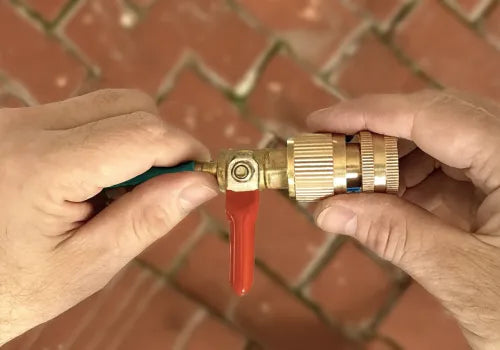

Take the garden hose coupling, pull back on the housing, and insert the male brass shut-off valve. Push the shut-off valve firmly into the coupling until it clicks into place.

Side note: Rotate the red handle of the shut off valve to the side to close it, and push it back to open.

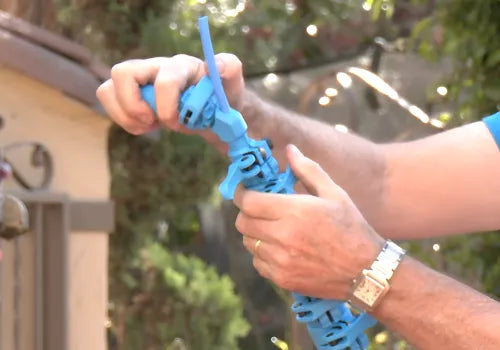

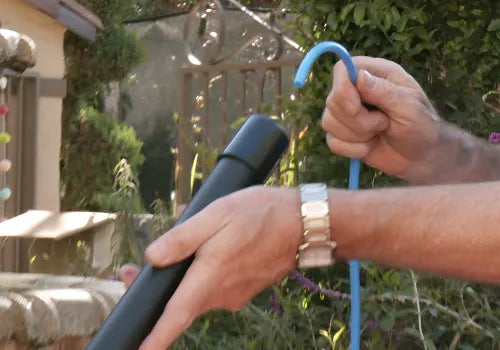

Take the pole and insert the end of the hose (without the shut-off valve and quick connect) inside the pole. Carefully feed the hose through the upper section of the pole, making sure it does not get caught. If you feel resistance, pull it back slightly and then attempt to feed it back up. When the hose comes out of the top of the pole, pull at least 2 feet out. This will ensure that you leave enough length to feed the hose through the locking angle adapter and connect to the brush head.

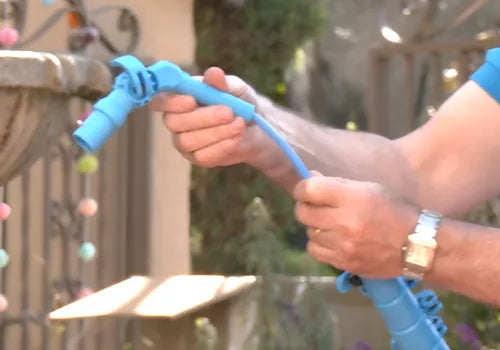

Slide the hose through the locking angle adapter from the bottom and out through the port behind the clamp.

Insert the angle adapter into the top pole, aligning the notch into the space in the top clamp. This will hold the adapter and ensure it, and the brush, do not spin.

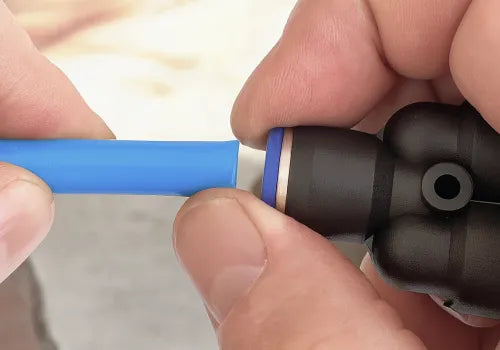

Insert the (4) 3.5" short hoses into the upper Y ports of the (2) Y-connectors by pulling back the blue locking collar, pushing in the hose and releasing. Slightly pull on the hose to ensure it is properly seated. If it comes out, reinsert, pressing it firmly into the connector.

Side note:The T-connector may come pre-assembled. If not, attach it to the brush by securing it with the (2) screws. Ensure the screws are tightened properly to hold the T-connector in place.

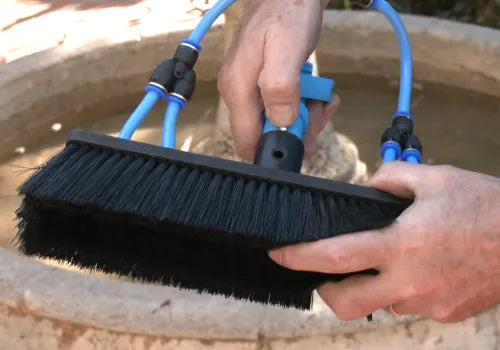

Insert the end of the hose that is protruding from the angle adapter into the bottom of the T-connector.

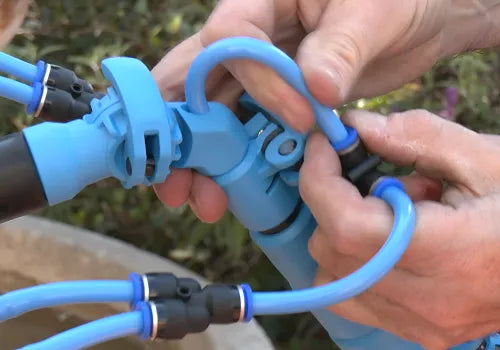

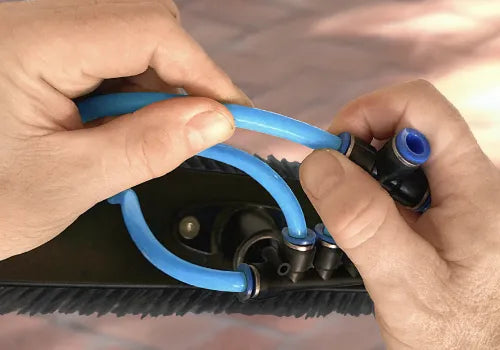

Insert the (2) 7" short hoses into the upper ports of the T-connector. Insert the opposite ends into the bottom port of the (2) Y-connectors.

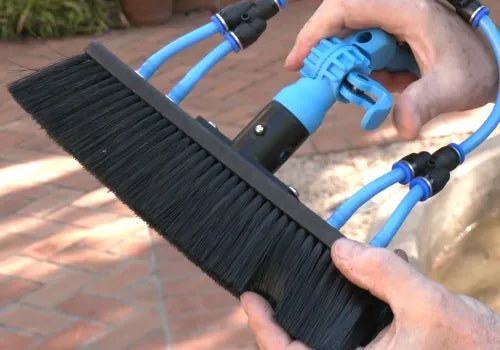

Take the brush head, align the locking hole with the pin on the angle adapter, slide it on and lock it into place. Make sure the locking mechanism clicks, ensuring it is secure.

Lift the locking clamp on the angle adapter to set the brush to your desired angle.

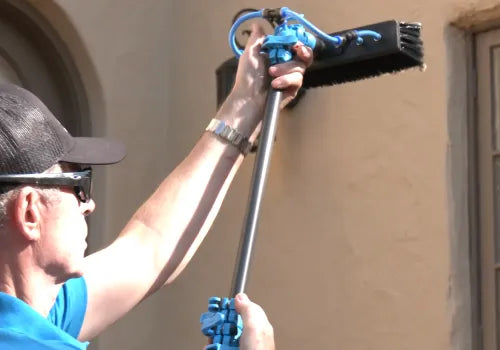

Before extending the pole, make sure each clamp is properly tightened. Every clamp has two adjustment points, and both should be set to a similar tension during initial setup.

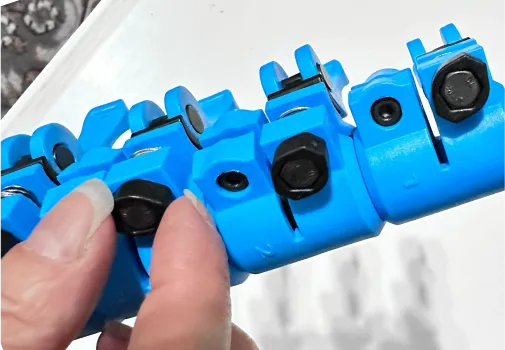

A. Top Lever Screw (Hand Adjustable): The top screw, with the black bolt head, is spring-loaded and should be tightened by hand. Check this regularly during use to keep the pole secure.

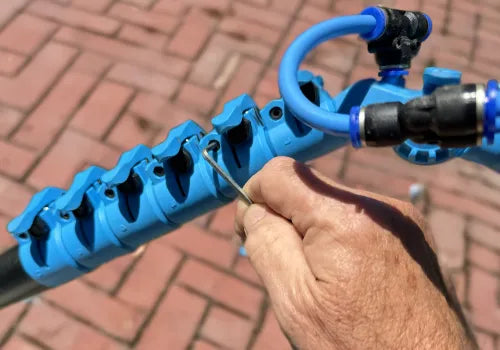

B. Bottom Screw (Hex Key Adjustable): The bottom screw should be tightened using the included hex key. Only re-tighten if you notice loosening that cannot be corrected by the hand-adjustable screw.

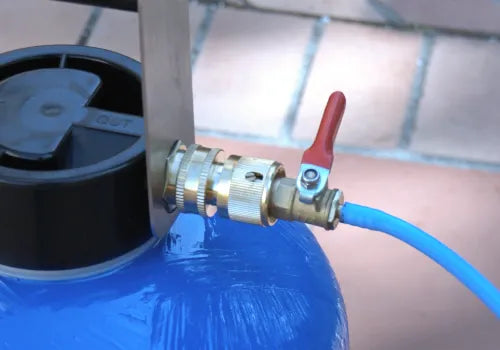

Attach the garden hose coupling to your water source.

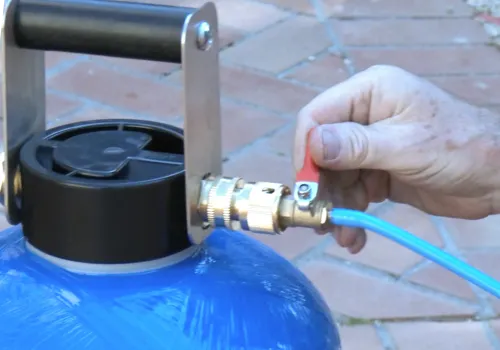

Turn on the water and rotate the red handle of the shut off valve to the flow position. Ensure that water is spraying out of the brush nozzles and there are no leaks between the hoses and connectors. Once verified, turn the valve to stop water flow.

Unclamp sections of the pole and extend up to your desired height. Clamp each section securely, and you're ready to start cleaning.
